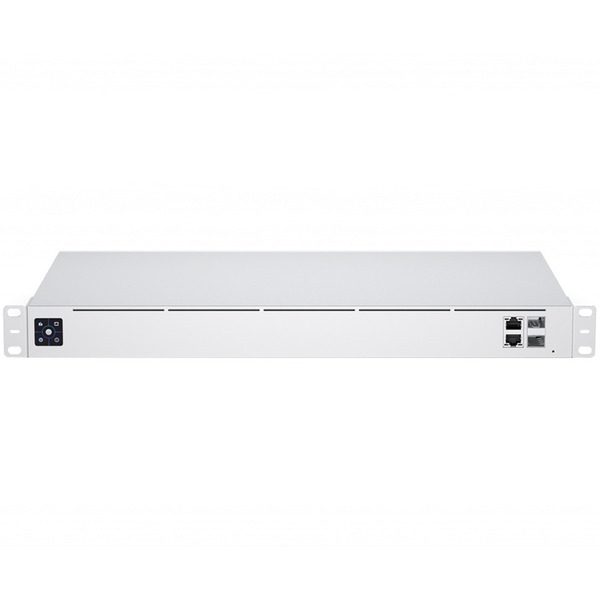

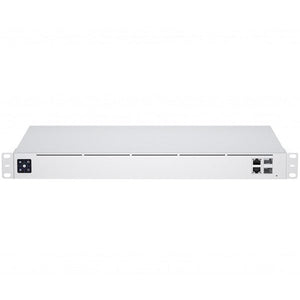

The Ubiquiti UXG-PRO UniFi Next-Generation Gateway Pro (UXG-PRO-EU) is designed for medium to large-sized networks requiring robust security, high-speed connectivity, and enterprise-class network management.
Equipped with a quad-core 1.7 GHz processor, dual-WAN ports (1 GbE RJ45 + 10G SFP+) with failover support, and dual-LAN ports (1 GbE RJ45 + 10G SFP+), the UXG-PRO ensures seamless, high-capacity performance for bandwidth-intensive applications. Its 1.3" touchscreen provides at-a-glance monitoring of network status, and the unit is rack-mountable (1U) for easy deployment in server rooms.
The UXG-PRO offers advanced enterprise-class security, including deep packet inspection (DPI), intrusion detection and prevention (IDS/IPS), and layered firewall configuration. It supports power redundancy when paired with the UniFi SmartPower RPS (sold separately) and integrates fully with the UniFi Network application for centralized management across web or mobile.
Built with a durable aluminum front panel and SGCC steel base, the UXG-PRO is engineered for long-term reliability in demanding environments. Whether you are upgrading your network or deploying a new secure infrastructure, this gateway delivers powerful security, high-speed performance, and enterprise-level control.
Key Features:
-
Quad-core ARM Cortex-A57 1.7 GHz processor
-
Dual-WAN and dual-LAN ports (1 GbE RJ45 + 10G SFP+)
-
Enterprise-class DPI, IDS/IPS, and layered firewall
-
1.3" touchscreen for status monitoring
-
Rack-mountable 1U design
-
Power redundancy via UniFi SmartPower RPS
-
Compatible with UniFi Network App (web/mobile) for centralized management
| General Information | |
| Network Device Type | |
| Network Device Type: | Firewall/Gateway |
| Data Link Protocol Supports (New): | LAN |
| CPU and Memory | |
| CPU: | ARM Cortex-A57 |
| CPU Core Quantity: | 4 |
| Internal Clock Rate: | 1.7 GHz |
| Installed RAM: | 2 GB |
| External Connections | |
| WAN: | 1 x 1GbE RJ-45 1 x 10GbE SFP+ |
| LAN Connections | |
| LAN: | 1 x 1GbE RJ-45 1 x 10GbE SFP+ |
| Features | |
| Standard Rack Height: | 1 U |
| Device Location: | Plug-in Module |
| Status LED Indicators: | Activity Status |
| Certifications: | CE, FCC, IC |
| Built-in Devices: | LCD Touchscreen Display Reset Button |
| Included Accessories: | Quick Start Guide |
| Interface Provided | |
| LAN: | 1 (RJ-45) |
| SFP+: | 1 |
| WAN: | 1 (RJ-45), 1 (SFP+) |
| Power | |
| Power Device Location: | Internal |
| Maximum Input Frequency: | 60 Hz |
| Minimum Input Frequency: | 50 Hz |
| Maximum Input Voltage: | 240 V |
| Minimum Input Voltage: | 200 V |
| Maximum Power Consumption: | 30 W |
| Dimensions & Weight | |
| Width (mm): | 285.6 mm |
| Height (mm): | 43.7 mm |
| Depth (mm): | 442 mm |
| Nominal Weight: | 3.43 kg |
| External Color: | Gray |
| Environment | |
| Maximum Operating Ambient Temperature: | 40 °C |
| Maximum Operating Humidity: | 95 % |
| Minimum Operating Ambient Temperature: | -10 °C |
| Minimum Operating Humidity: | 5 % |
| Warranty | |
| Warranty Products Returnable: | Yes |
| Warranty Term (month): | 12 month(s) |
| Warranty Validation Criteria: | Serial Number |
| Warranty Term Notes: | 24 months - for EU |
| Logistic | |
| Pack Length (mm): | 521 mm |
| Pack Width (mm): | 123 mm |
| Pack Height (mm): | 415 mm |
| Pack Weight Brutto (kg): | 4.75 kg |
| Pack Weight Netto (kg): | 3 kg |
| Pieces in pack: | 1 |
| Box Length (mm): | 537 mm |
| Box Width (mm): | 262 mm |
| Box Height (mm): | 455 mm |
| Box Weight Brutto (kg): | 10.412 kg |
| Retail Packaging Net Weight Carton: | 3.42 kg |
| Retail Packaging Net Weight Plastic: | 3.42 kg |
| Packs in Box: | 2 |
| Package Type: | Box |
| EAN Code: | 810010073525 |
