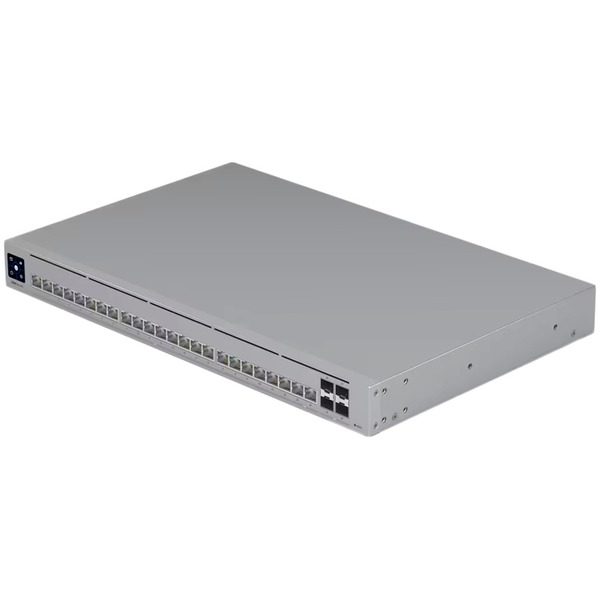

The Ubiquiti USW-PRO-HD-24-EU is a high-performance Layer 3 Etherlighting switch engineered for enterprise and data centre networks. With 22x 2.5 GbE ports, 2x 10 GbE ports, and 4x 10G SFP+ uplink ports, it delivers high-speed connectivity for demanding applications while providing low latency and reliable performance.
Built with Layer 3 switching capability, the USW-PRO-HD-24-EU supports IPv4 routing, DHCP, QoS, IGMP, STP, RSTP, and LLDP, ensuring efficient network management and robust traffic handling. It also comes DC power backup ready, making it a dependable choice for continuous operation in Johannesburg and Pretoria environments.
Key Features:
-
24-port Layer 3 Etherlighting switch
-
22x 2.5 GbE RJ45 ports, 2x 10 GbE RJ45 ports, 4x 10G SFP+ ports
-
Total MAC address table: 32K entries
-
Network features: DHCP Server, Jumbo Frames, MAC address filtering
-
Supports IPv4 routing and network protocols: ARP, QoS, IGMP, STP, RSTP, LLDP
-
Rackmountable, 1U standard
-
Certifications: CE, FCC, IC
-
DC power backup ready for uninterrupted operation
-
Ideal for enterprise networks, data centres, and professional installations
-
Nominal weight: 4.2 kg; dimensions: 442 x 44 x 285 mm
-
Warranty: 24 months
Perfect for Johannesburg & Pretoria, the USW-PRO-HD-24-EU provides enterprise-grade Layer 3 performance with flexible connectivity options, ensuring your network runs smoothly and efficiently.
Technical Specification| Networking Specifications | |
| Number of Ports: | 22 x (Ethernet/Fast Ethernet/Gigabit Ethernet) RJ-45 2 x (Ethernet/Fast Ethernet/Gigabit Ethernet) RJ-45 4 x (10 Gbps) SFP+ |
| Switching Layers: | Layer 3 |
| MAC Address Table Size: | 32K |
| Network/Transport Protocol: | IPv4 DHCP QoS IGMP STP RSTP LLDP |
| Networking Compliant Standards: | IEEE 802.1X |
| Networking Features: | DHCP Server Built-in Jumbo Frames Support MAC address filtering |
| Mounting Capability: | Rackmount |
| Standard Rack Height: | 1U |
| Certifications: | CE, FCC, IC |
| Interface Provided | |
| LAN: | 24 (RJ-45) |
| SFP+: | 4 |
| Power | |
| Power over Ethernet/Power Adapter: | AC 100-240 V, 50/60 Hz |
| Power Consumption Operational: | 60 W |
| Dimensions & Weight Device | |
| Depth (mm): | 442 mm |
| Height (mm): | 44 mm |
| Width (mm): | 285 mm |
| Nominal Weight: | 4.2 kg |
| Environment | |
| Maximum Operating Ambient Temperature: | 40 °C |
| Maximum Operating Humidity: | 90 % |
| Minimum Operating Ambient Temperature: | -5 °C |
| Minimum Operating Humidity: | 10 % |
| Warranty | |
| Warranty Products Returnable: | Yes |
| Warranty Term (month): | 24 month(s) |
| Warranty Validation Criteria: | Serial Number |
| Logistic | |
| Pack Length (mm): | 521 mm |
| Pack Width (mm): | 123 mm |
| Pack Height (mm): | 398 mm |
| Pack Weight Brutto (kg): | 5.9415 kg |
| Pack Weight Netto (kg): | 4 kg |
| Pieces in pack: | 1 |
| Box Length (mm): | 537 mm |
| Box Width (mm): | 261 mm |
| Box Height (mm): | 432.8 mm |
| Box Weight Brutto (kg): | 11.883 kg |
| Retail Packaging Net Weight Carton: | 0 kg |
| Retail Packaging Net Weight Plastic: | 0 kg |
| Packs in Box: | 2 |
| Package Type: | Retail |
| EAN Code: | 810084696637 |
