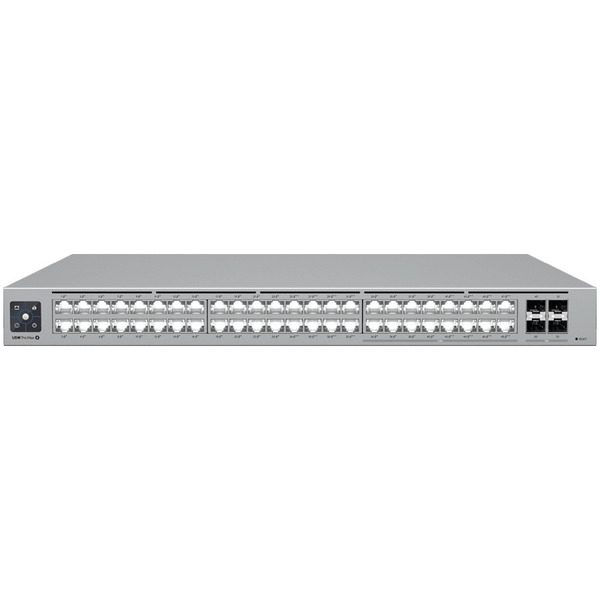

The Ubiquiti USW-PRO-MAX-48-POE Etherlighting Switch is engineered for high-performance, enterprise-grade networks, offering Layer 3 functionality with advanced PoE++ support for powering access points, IP cameras, and other PoE-enabled devices.
Featuring 52 ports, including 16 x 2.5GbE (8 PoE+ / 8 PoE++), 32 x GbE (24 PoE+ / 8 PoE++), and 4 x 10G SFP+, the USW-PRO-MAX-48 provides high-speed connectivity and robust network management capabilities. The switch supports Etherlighting, Jumbo Frames, DHCP server, flow control, storm control, port mirroring, and LACP port aggregation, making it a versatile solution for businesses and enterprise deployments.
Its rackmountable design with a built-in LCD touchscreen simplifies monitoring and management. The internal power supply supports up to 720W PoE output with DC backup ready, ensuring reliable power delivery to connected devices.
Key Features:
-
48 RJ45 ports + 4 x 10G SFP+ uplinks
-
16 x 2.5GbE (8 PoE+ / 8 PoE++), 32 x GbE (24 PoE+ / 8 PoE++)
-
Layer 3 switching with Etherlighting support
-
Built-in LCD touchscreen for monitoring
-
DHCP server, Jumbo Frames, Flow/Storm Control, Port Mirroring
-
Rackmountable, 1U height
-
720W PoE output, DC backup ready
-
CE, FCC, IC certified
-
12-month warranty
Perfect for Johannesburg and Pretoria businesses seeking a high-capacity PoE++ Layer 3 switch with professional Etherlighting features, the USW-PRO-MAX-48 ensures robust, reliable, and high-performance networking.
Technical Specification| Networking Specifications | |
| Number of Ports: | 16 x (2.5 Gbps) RJ-45 32 x 10Base-T/100Base-TX/1000Base-T (Ethernet/Fast Ethernet/Gigabit Ethernet) RJ-45 4 x (10 Gbps) SFP+ |
| Total Number of Ports: | 52 |
| Switching Protocol: | Ethernet |
| Switching Layers: | Layer 2 Layer 3 |
| Data Bit Rate: | 224 Gbps |
| MAC Address Table Size: | 32K |
| Network/Transport Protocol: | IPv4 ARP DHCP QoS IGMP STP RSTP LLDP |
| LAN Management Protocol Supported: | AR |
| Networking Compliant Standards: | IEEE 802.1Q(VLAN) IEEE 802.1X |
| Networking Features: | DHCP Server Built-in Jumbo Frames Support Egress Rate Limit Flow Control Storm Control Multicast & Broadcast Rate Limiting Port Isolation Port Mirroring Loop Protection Etherlighting DHCP Relay LACP Port Aggregation LCD Touchscreen Built-in 32 Ports PoE+ 16 Ports PoE++ |
| Device Location: | External |
| Mounting Capability: | Rackmount |
| Standard Rack Height: | 1U |
| Certifications: | CE, FCC, IC |
| Interface Provided | |
| LAN: | 48 (RJ-45); 4 (SFP+) |
| Power | |
| Power Supply: | Internal AC 100-240 V, 50/60 Hz |
| Power over Ethernet: | External |
| Power Consumption Operational: | 100 W |
| Dimensions & Weight Device | |
| Depth (mm): | 400 mm |
| Height (mm): | 44 mm |
| Width (mm): | 442.4 mm |
| Nominal Weight: | 6.2 kg |
| External Color: | Gray |
| Environment | |
| Maximum Operating Ambient Temperature: | 40 °C |
| Maximum Operating Humidity: | 90 % |
| Minimum Operating Ambient Temperature: | -5 °C |
| Minimum Operating Humidity: | 10 % |
| Warranty | |
| Warranty Products Returnable: | Yes |
| Warranty Term (month): | 12 month(s) |
| Warranty Validation Criteria: | Serial Number |
| Logistic | |
| Pack Weight Brutto (kg): | 4 kg |
| Pack Weight Netto (kg): | 3.7 kg |
| Pieces in pack: | 1 |
| Box Weight Brutto (kg): | 4 kg |
| Retail Packaging Net Weight Carton: | 3.7 kg |
| Retail Packaging Net Weight Plastic: | 3.7 kg |
| Packs in Box: | 1 |
| Package Type: | Box |
| EAN Code: | 810084692615 |
