Hikvision Face Recognition Access Control Terminal

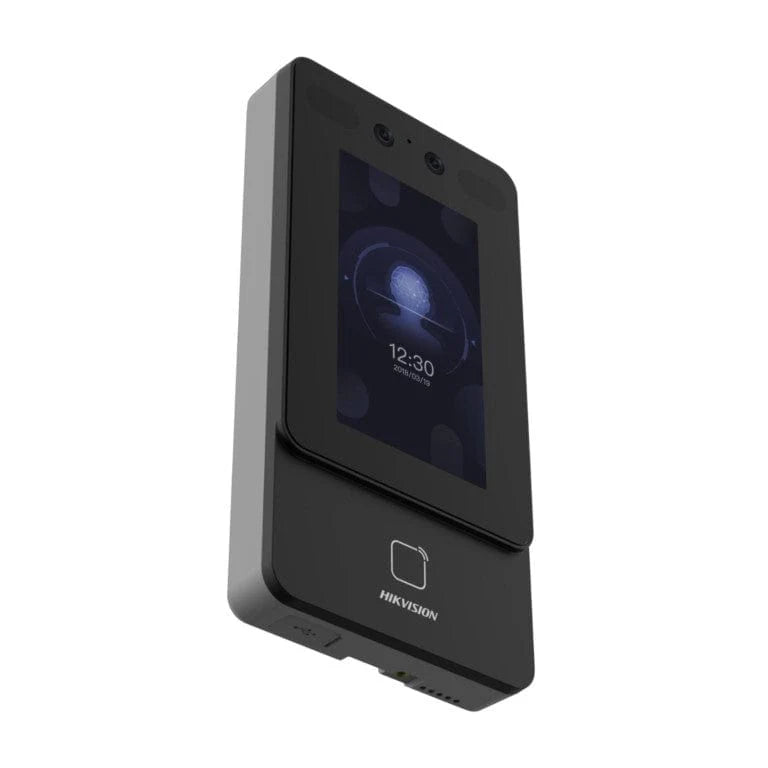

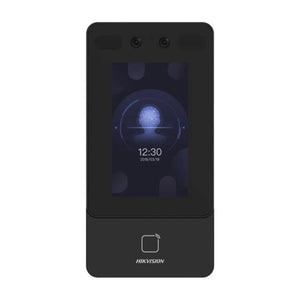

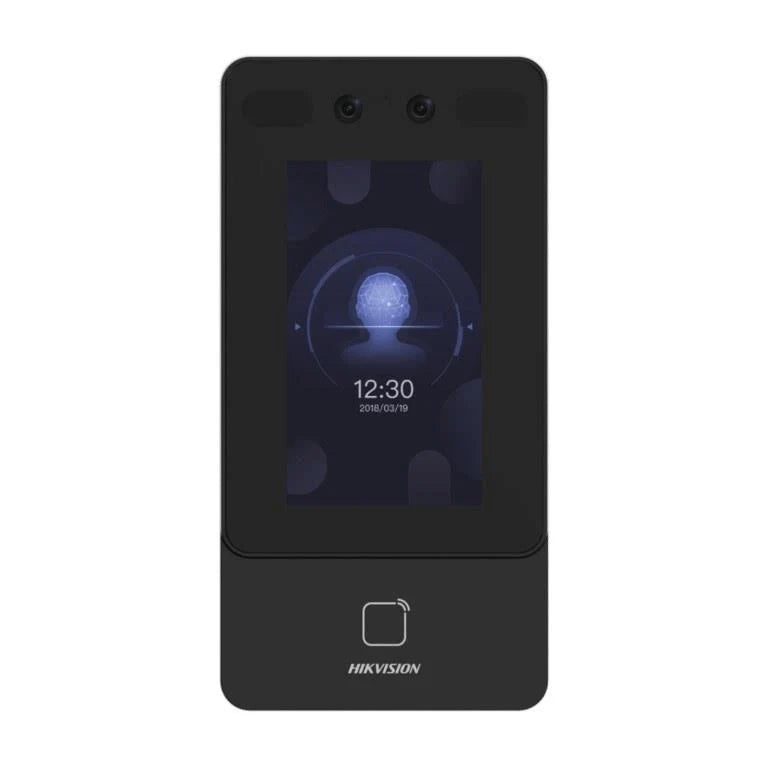

Hikvision DS-K1T342MWX-E1 Face Recognition Access Control Terminal

The Hikvision DS-K1T342MWX-E1 Face Recognition Access Control Terminal uses advanced deep-learning technology to deliver fast and highly accurate facial recognition for secure access control. Designed for modern security environments, this device supports multiple authentication methods including face recognition, card authentication, and PIN verification.

With a 4.3-inch touch display, built-in card reader, and 2MP wide-angle camera, the terminal offers a reliable and convenient access solution. It is ideal for use in office buildings, corporate facilities, financial institutions, and other high-security environments.

Key Features

• Supports up to 1,500 face templates and 3,000 cards

• 4.3-inch LCD capacitive touch screen

• 2MP wide-angle camera for accurate facial recognition

• Built-in M1 card reader

• Face recognition distance: 0.3 m – 1.5 m

• Recognition speed: < 0.2 seconds per user

• Accuracy rate: ≥ 99%

• Mask detection supported

• Two-way audio communication with client software, indoor stations, and main stations

• Supports TCP/IP and Wi-Fi connectivity

• Configuration via web client

• Supports ISAPI and ISUP5.0 protocols

• Standard PoE support, with power output for door lock (12 VDC / 1 A)

• Supports device-set or platform-based personal PIN authentication

System

• Operating System: Linux

Display

• Screen Size: 4.3-inch

• Resolution: 272 × 480

• Display Type: LCD

• Operation: Capacitive Touch Screen

Video

• Camera: 2 Megapixel

• Lens: 2×

• Video Standard: PAL (Default) / NTSC

Network

• Wired Network: 10/100 Mbps self-adaptive

• Wi-Fi: Supported

Interfaces

• PoE: IEEE802.3at Standard

• Network Interface: 1

• RS-485: 1

• Wiegand Interface: 1

• Lock Output: 1

• Exit Button Input: 1

• Door Contact Input: 1

• Tamper Alarm: 1

• USB Port: 1

Capacity

• Card Capacity: 3,000

• Face Capacity: 1,500

• Event Capacity: 150,000

Authentication

• Card Type: M1 Card

• Card Frequency: 13.56 MHz

• Face Recognition Time: < 0.2 seconds

• Face Recognition Accuracy: > 99%

• Recognition Distance: 0.3 m – 1.5 m

General Specifications

• Power Input:

  • 12 VDC / 1 A power adapter (included)

  • PoE (37 – 57 VDC / 0.6 A)

• Door Lock Power Output:

  • 12 VDC / 1 A (when powered via PoE)

• Dimensions: 91.3 mm × 181.3 mm × 24.5 mm

• Installation: Wall Mount

• Protection Rating: IP65

Additional Functions

• Face Anti-Spoofing Protection

• Audio Prompts

• Automatic Time Synchronisation
