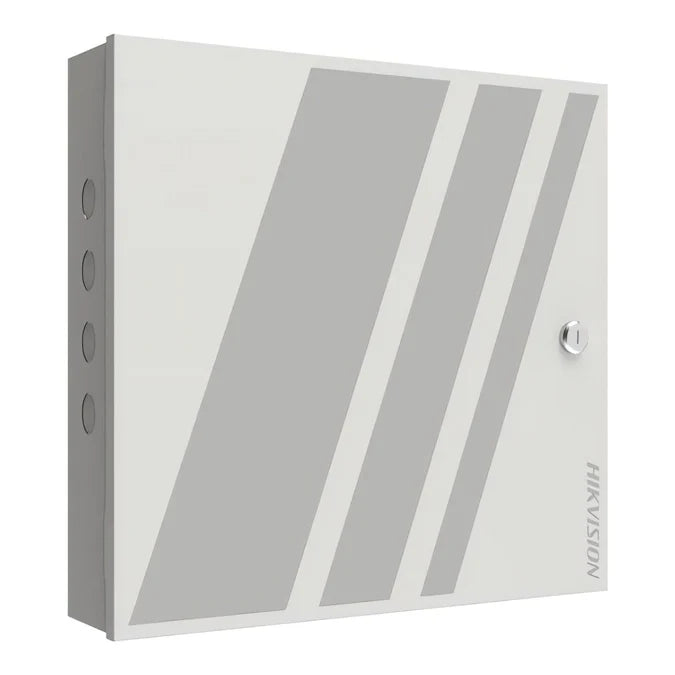

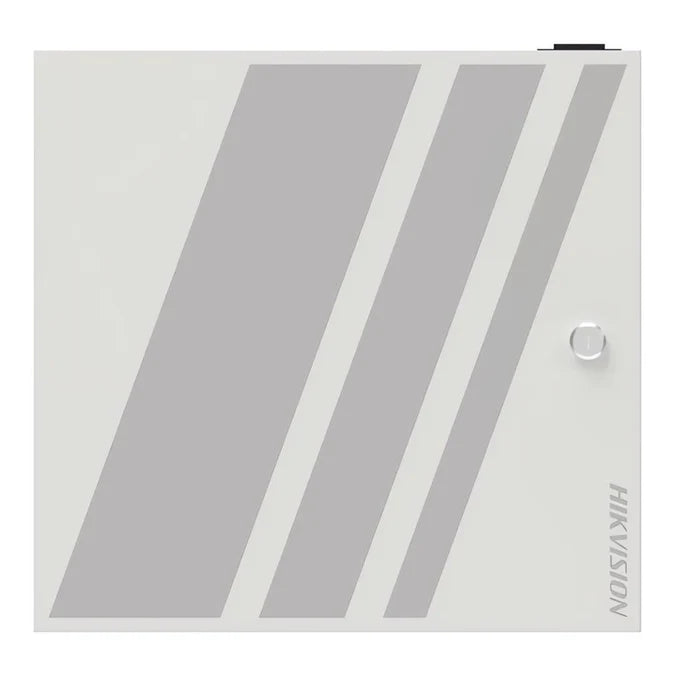

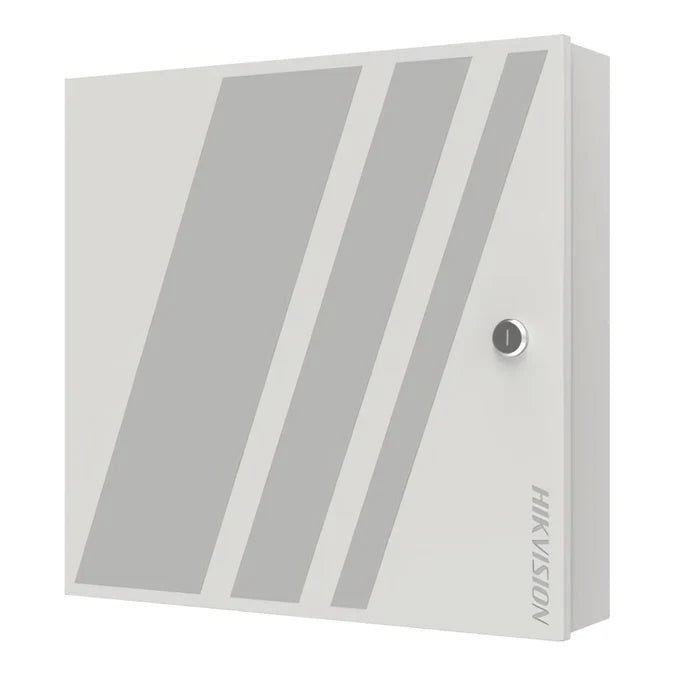

Hikvision Access Controller with 2-door Control Support DS-K2702WX-E1

Hikvision Access Controller with 2-Door Control Support DS-K2702WX-E1

The Hikvision Access Controller with 2-Door Control Support DS-K2702WX-E1 is a powerful and scalable access control solution designed for enterprise-level security management. Supporting advanced authentication methods, extensive door expansion, and intelligent security functions, this controller is ideal for large commercial, industrial, and high-security environments.

Key Features

• Supports 2-door control with expansion up to 126 doors
• Expandable with up to 62 DS-K2M002X access modules
• Advanced anti-passback and multi-door interlocking functions
• Web-based configuration and management
• PoE and Wi-Fi connectivity support
• Backup battery charging and discharging support
• Redundant RS-485 communication design for improved stability
• Real-time status indicators for system monitoring

Scalable Enterprise Access Control

The DS-K2702WX-E1 is designed for growing security environments, allowing expansion from 2 doors up to 126 controlled doors through additional access modules. Its advanced architecture ensures reliable communication and system flexibility for large-scale deployments.

Intelligent Security Functions

This controller supports professional access control features including:

• Multi-factor authentication
• First person in functionality
• Anti-passback across 32 routes
• Multi-door interlocking for enhanced security control

These features help improve access management and reduce unauthorized entry risks.

Reliable Communication & Connectivity

The controller features a robust RS-485 redundancy wiring design that enhances communication stability and reliability. It also supports:

• Gigabit wired network connectivity
• 2.4GHz Wi-Fi support
• Standard PoE power supply
• USB 2.0 interface
• Fire alarm integration

Large Capacity Performance

Built for enterprise environments, the controller supports:

• 100,000 users
• 200,000 cards
• 10,000 fingerprints
• 600,000 event records

It can connect up to:

• 4 RS-485 card readers using OSDP protocol
• 4 Wiegand card readers

Efficient Management & Monitoring

The DS-K2702WX-E1 includes 11 built-in status indicators for monitoring power, network communication, Wi-Fi, RS-485 activity, and door status, making equipment diagnostics simple and efficient.

Technical Specifications

• Operating System: Linux
• Wired Network: 10/100/1000 Mbps adaptive
• Wi-Fi: 2.4GHz 802.11b/g/n
• Power Supply: 100–240VAC or PoE
• Power Consumption: ≤ 72W
• Installation: Wall Mount
• Lock Power Output: 12V, 2A

Advanced Security for Modern Facilities

The Hikvision DS-K2702WX-E1 combines scalability, intelligent security features, and flexible connectivity, making it an ideal access control solution for offices, campuses, industrial facilities, and enterprise environments requiring advanced door management and high-level security
