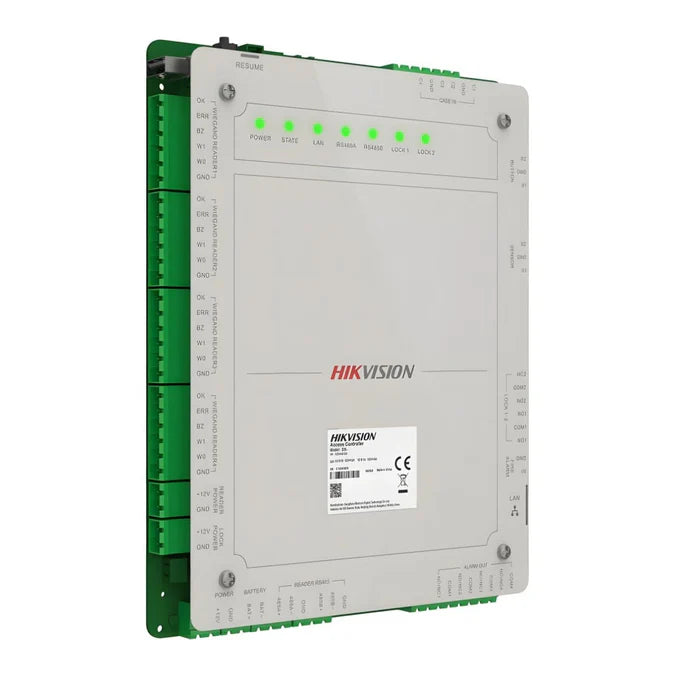

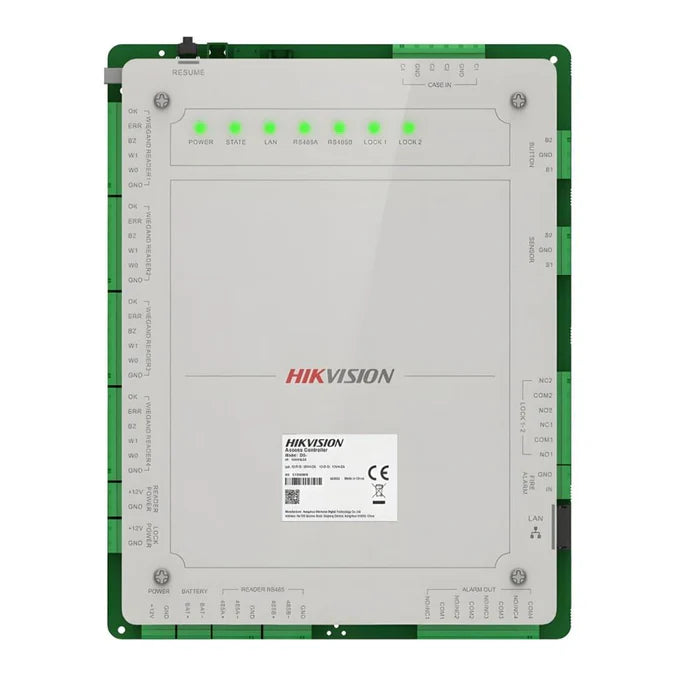

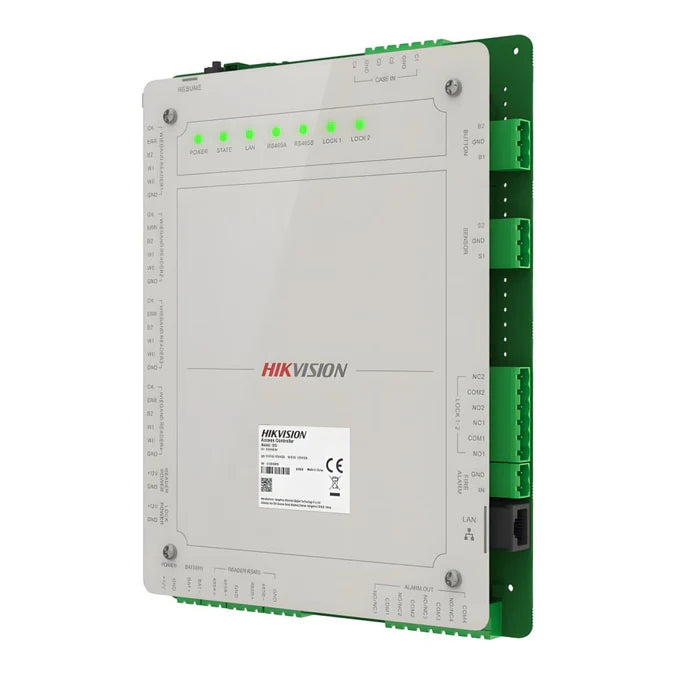

Hikvision 2 Door Pro Series Access Controller DS-K2622X(P)
The Hikvision 2 Door Pro Series Access Controller DS-K2622X(P) is an advanced professional access control solution designed for secure and efficient two-door management in commercial and enterprise environments. Built with enhanced encryption, flexible connectivity, and intelligent access control functions, it delivers reliable security and seamless system integration.
Key Features
- Supports 2-door access control
- Compatible with IPv4, IPv6, and DHCP networks
- Advanced AES256, RSA2048, and TLS 1.2 encryption protocols
- Convenient web-based configuration and management
- Supports anti-passback and multi-door interlocking
- Backup battery support for uninterrupted operation
- Compatible with OSDP and multiple Wiegand formats
- Built-in equipment status indicators for easy monitoring
Advanced Security & Encryption
The DS-K2622X(P) is equipped with enterprise-grade encryption technologies, including AES256, RSA2048, and TLS 1.2, helping secure communication and protect sensitive access control data.
Flexible Access Control Management
Designed for professional security applications, the controller supports:
- Multi-factor authentication
- Anti-passback functionality
- Multi-door interlocking
- Web browser configuration without additional software
Its flexible architecture allows integration with third-party card readers through OSDP and Wiegand interfaces.
Powerful Connectivity
The controller supports:
- 2 lock control outputs
- 2 exit button inputs
- 2 door contact inputs
- 4 alarm inputs and 4 alarm outputs
- RS-485 and Wiegand reader connectivity
- Fire interface support
It can connect up to:
- 4 RS-485 card readers using OSDP protocol
- 4 Wiegand card readers
Reliable Performance
Built for demanding environments, the DS-K2622X(P) supports battery charging and discharging functions and operates efficiently in temperatures ranging from -10°C to 55°C.
Technical Specifications
- Network: 10/100 Mbps adaptive wired network
- Power Supply: 12V DC ±15%
- Power Consumption: ≤ 72W
- Installation: Wall Mount
- Working Humidity: 0% – 90% non-condensing
- Supported Languages: Multiple international language options
Professional Access Control Solution
Ideal for offices, commercial buildings, industrial facilities, and secure environments, the Hikvision DS-K2622X(P) offers intelligent access management, advanced security features, and reliable performance for modern access control systems.
