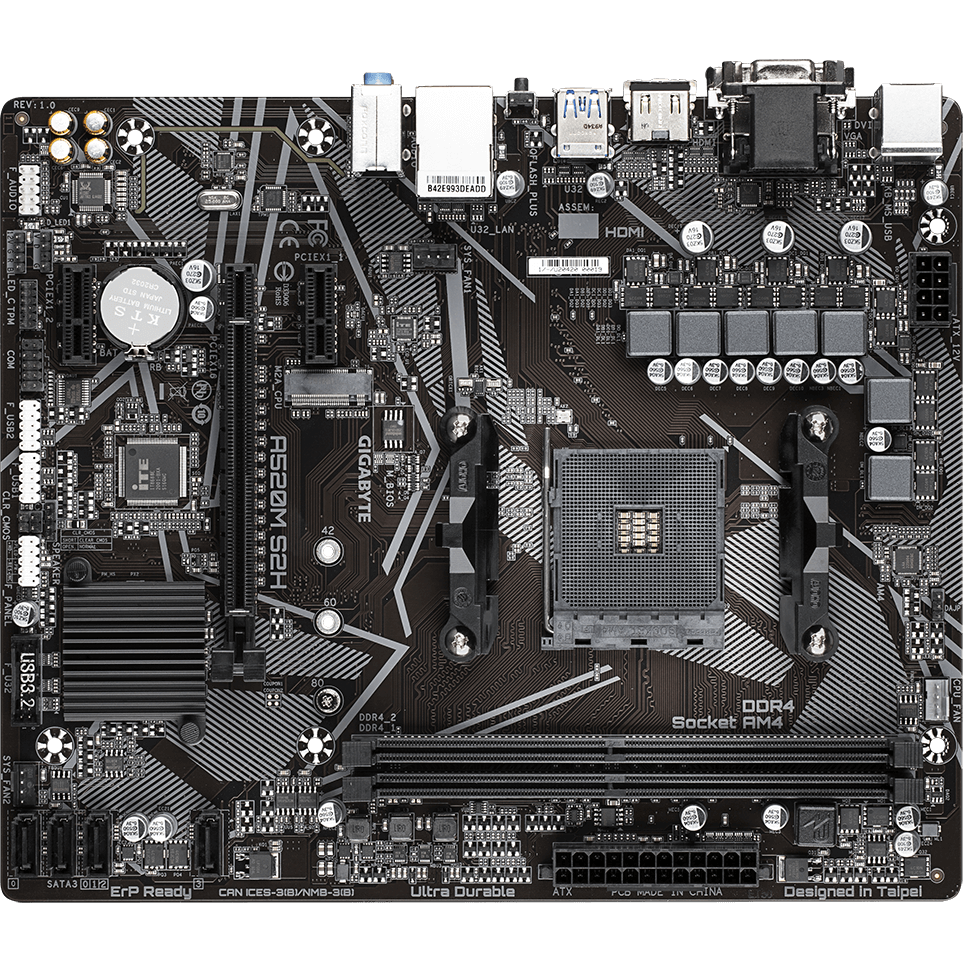

Gigabyte A520M S2H DDR4 AM4 Motherboard

Gigabyte A520M S2H DDR4 AM4 Micro-ATX Motherboard (GA-A520M-S2H)

The Gigabyte A520M S2H is a reliable and affordable Micro-ATX motherboard designed for AMD Ryzen processors. Built on the AMD A520 chipset, it supports a wide range of Ryzen CPUs and provides essential features for building a stable home, office, or entry-level gaming PC.

With support for high-speed DDR4 memory, PCIe expansion, M.2 SSD storage, and multiple display outputs, this motherboard delivers excellent performance and flexibility for modern computing needs.

Key Features

• AMD Socket AM4 – Supports AMD Ryzen 5000, 5000 G-Series, 4000 G-Series, 3000 and 3000 G-Series processors

• Dual DDR4 Memory Slots – Supports up to 64GB DDR4 RAM with speeds up to 5100MHz (OC)

• Ultra-Fast Storage – 1 x M.2 PCIe 3.0 x4 slot and 4 x SATA 6Gb/s ports

• Triple Display Support – HDMI, DVI-D, and VGA outputs (depending on CPU graphics support)

• Gigabit LAN – Realtek GbE LAN for stable and fast wired networking

• High Definition Audio – Realtek audio codec supporting up to 7.1-channel sound

• Q-Flash Plus – Update the BIOS easily without installing a CPU or memory

• RGB Fusion Support – Control RGB lighting for compatible components

Processor Support

• AMD Socket AM4

• Compatible with:

  • AMD Ryzen™ 5000 Series

  • Ryzen™ 5000 G-Series

  • Ryzen™ 4000 G-Series

  • Ryzen™ 3000 Series

  • Ryzen™ 3000 G-Series

Memory Support

• 2 x DDR4 DIMM slots

• Maximum capacity: 64GB

• Dual-channel memory architecture

• Supports DDR4 speeds up to 5100MHz (overclocked)

• Supports ECC and non-ECC memory modules (CPU dependent)

• Supports XMP memory profiles

Graphics Outputs

Supports integrated AMD Radeon graphics when using compatible Ryzen processors.

Available display outputs:

• 1 x HDMI (up to 4096 × 2160 @ 60Hz)

• 1 x DVI-D (up to 1920 × 1200 @ 60Hz)

• 1 x VGA (D-Sub) (up to 1920 × 1200 @ 60Hz)

Supports up to three displays simultaneously.

Expansion Slots

• 1 x PCIe 3.0 x16 slot

• 2 x PCIe 3.0 x1 slots

Storage Options

• 1 x M.2 slot (PCIe 3.0 x4/x2 & SATA SSD support)

• 4 x SATA 6Gb/s ports

• RAID support: RAID 0, RAID 1, RAID 10

Networking

• Realtek Gigabit LAN (10/100/1000 Mbps)

USB Connectivity

Rear panel:

• 4 x USB 3.2 Gen 1

• 2 x USB 2.0

Internal headers:

• 2 x USB 3.2 Gen 1

• 4 x USB 2.0

Internal Connectors

• 24-pin ATX power connector

• 8-pin CPU power connector

• CPU fan header

• 2 x system fan headers

• RGB and addressable LED headers

• Front panel audio header

• USB headers

• TPM header

• Serial port header

• Chassis intrusion header

• Clear CMOS jumper

Rear Panel I/O

• 1 x PS/2 keyboard/mouse port

• 1 x VGA (D-Sub)

• 1 x DVI-D

• 1 x HDMI

• 4 x USB 3.2 Gen 1

• 2 x USB 2.0

• 1 x RJ-45 Gigabit LAN

• 3 x Audio jacks

• 1 x Q-Flash Plus button

BIOS

• 128 Mbit AMI UEFI BIOS

• Supports Q-Flash and Q-Flash Plus

Operating System Support

• Windows 11 (64-bit)

• Windows 10 (64-bit)

Form Factor

• Micro-ATX

• Dimensions: 24.4cm x 20.5cm

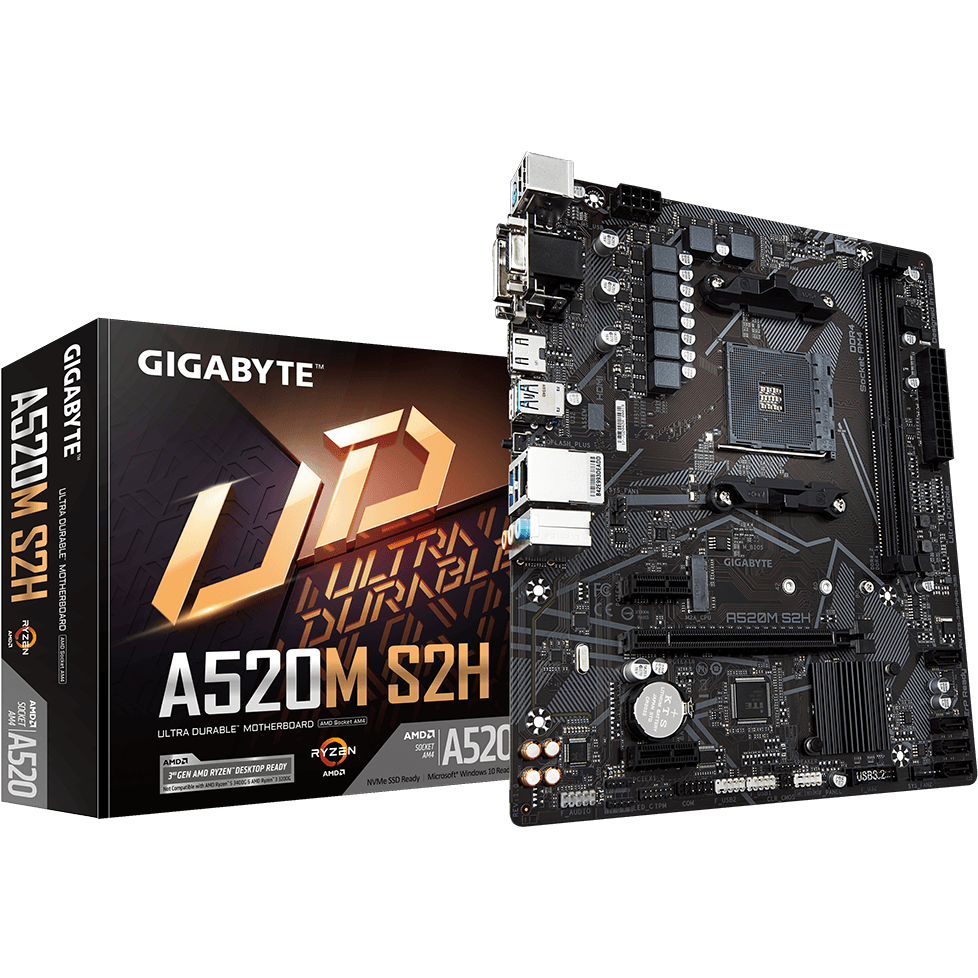

What's in the Box

• Gigabyte A520M S2H DDR4 AM4 Motherboard

• Mounting Screws

• Documentation
